Urbanisation of the Central Breakwater in the outer port of Bilbao
Type of work:
Roads
Clients:
Port Authority of Bilbao
Location:
Spain

  • 201,400 m2

    Surface

Urbanisation of the Central Breakwater in the outer port of Bilbao

Lantania, in a joint venture with Iza Obras y Promociones, carried out the first phase of the urbanisation works of the Central Breakwater for the extension of the Port of Bilbao in the Abra Exterior.

The works were carried out in an area of 201,400 square metres and consisted of the execution of the connection roads to the North-South carriageway of internal communication of the Port of Bilbao, for which two roads and a connecting roundabout were built. From there, a road was partially built along the entire length of the central breakwater, giving access to the different areas of the esplanade by means of new roads.

In addition, the concrete slabs were laid in anticipation of the railway works along the entire length of the breakwater, as well as the paving of the esplanade area corresponding to this stage. The lighting and electricity conduits and a CCTV (Closed Circuit Television) system were built along the entire length of the breakwater, as well as the drainage network of the executed roads, the complete railway platform and the esplanade area.

Important magnitudes:

  • Excavation and profiling in:
    – Crowning of suitable soil 8,300 m3.
    – Cutting for road surface 2,500 m3.
  • Trench excavation 28,300 m3.
  • Concrete for filling piping 6.700 m3.

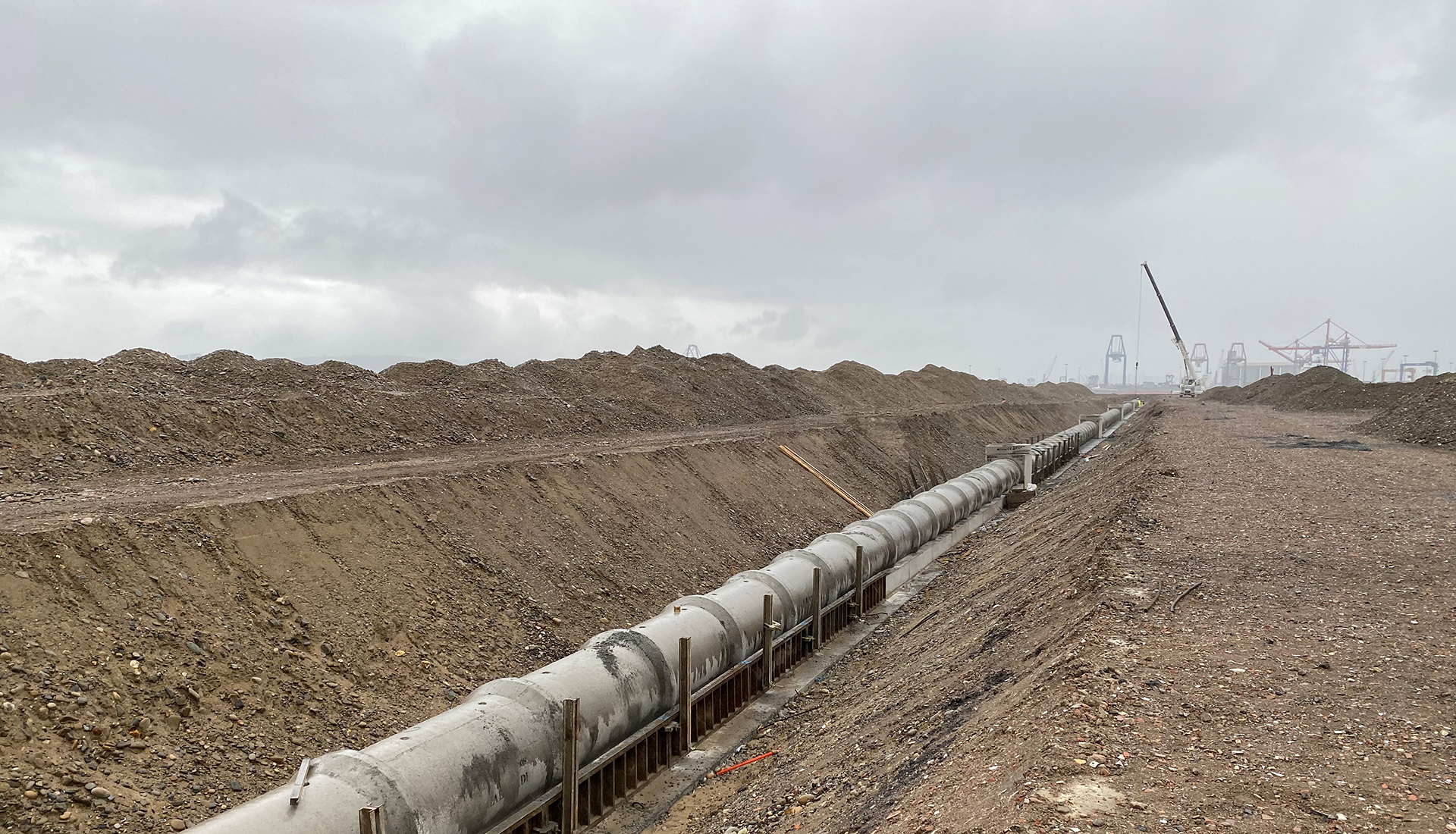

  • Reinforced concrete piping 1.225 m.
  • Electrical and telecommunications conduits 35 km.
  • Gravel-concrete base 3.455 m3.
  • Granular base of artificial gravel 61.400 m3.
  • Continuously hot bituminous mix 55.300 tn.
  • Asphalt bitumen B50/70: 2.300 tn.
